Stellar Data Recovery/5. Working with the Software/5.7. Working with RAID/5.7.1. Building RAID When Parameters are Known
5.7.1. Building RAID When Parameters are Known
To build RAID usingStellar Data Recovery, you must preferably know the disk order, start sector of RAID in each disk, stripe/block size, parity repetition/delay, and parity order. Multiple possible RAIDs are constructed according to the combination of parameter options that you provide. User has to choose from any one of them. After the RAID is rebuilt, you can perform scanning and recovery operations on the RAID volumes.
To build RAID when parameters are known:
RunStellar Data Recovery.
FromSelect What to Recoverscreen, select the type of data i.e.Everything, Documents, Folders & EmailsorMultimedia Files, you want to recover.
ClickNext.

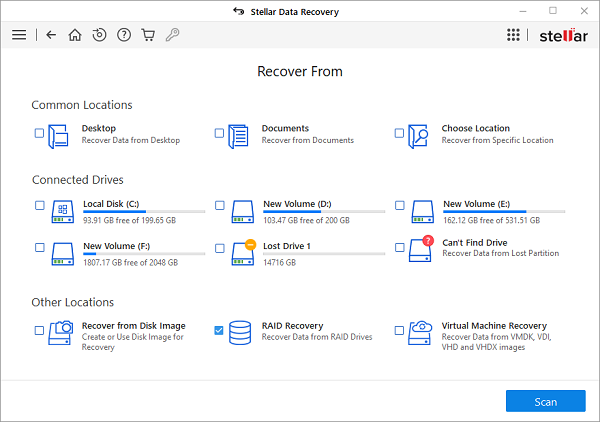

OnRecover Fromscreen, selectRAID RecoveryfromOther Locationsand clickScan.
TheRAID Reconstructionwindow is displayed. All the RAID drives and a missing drive are shown in ‘Select Hard Drives to Reconstruct RAID‘ section.
In the ‘Select Hard Drives to Reconstruct RAID‘ section, click on a RAID hard disk and then click
Repeat this till all the RAID disks are shown in theMove hard drives up/down for disk ordersection.In the ‘Move hard drives up/down for disk order‘ section, click on a hard disk and then click
or
to change its order. Repeat this till all the drives are in the correct order. Double Click the block under RAID Start Sector to type the starting sector.In the ‘Select Stripe/Block Size‘ drop-down, select a block size.
In the ‘Select Parity Order/Rotation‘ drop-down, select a rotation method.
In the ‘Select Parity Repetition/Delay‘ drop-down, select a delay amount.
Click
. A single RAID is shown. Select it and click theShow Volume Listbutton to continue recovery. The found volume and the RAID are shown under theRAID Recoverybutton on the main screen.
IfStellar Data Recoveryis not able to build a RAID and no volume is found, aCreate Virtual Driveoption is shown. You can perform raw recovery or search for lost volumes in it. Click it to create virtual drive. Virtual drive is shown in ‘Select Hard Drive to Search Lost volume‘ in RAID, under the RAID Recovery button on the main screen.
Click theReconstruct RAIDbutton to perform construction from once again, or clickLoad Constructed RAIDbutton to select another constructed RAID from the list of probable RAIDs.
Related link:
Click onKnowledge Base Article"How to Recover Data from Lost or Deleted RAID 0, 5 and 6 Volumes?"
